AV Access Docking Station KVM Switch 1 Laptop & 2 Desktop PCs, Dual 4K@60Hz Monitors, EDID Emulation, 100W USB C Charging, Gigabit Ethernet,High Refresh Rates,Ideal for Gaming, Office & Creative Work

<p><strong style="color: rgb(165, 0, 33);">Overview</strong></p><p>KD-E30 is a 3x1 USB-C &amp; HDMI KVM switch docking station that allows three different input devices to share two HDMI displays and multiple USB peripherals. It supports one USB-C input and two sets of dual-channel HDMI + USB-B inputs, along with two HDMI outputs. Each HDMI input and output supports resolutions up to 4K@60Hz (4:4:4, 8bit) and is HDCP 2.2 compliant.</p><p></p><p>The USB-C input supports DP MST mode, enabling dual 4K@60Hz video output. It also supports USB data transmission at up to 5Gbps and provides a wired LAN connection for the connected laptop. Additionally, the device features a dedicated USB-C charging port that supports up to 100W power delivery for laptop charging.</p><p></p><p>The switcher also allows seamless sharing of USB peripherals among all three connected inputs and supports direct switching via buttons on the front panel. It provides a wide compatibility choice for different operating systems, such as Windows, Mac OS and Linux, no driver required and simple plug and play.</p><p></p><p><strong style="color: rgb(165, 0, 33);">Features</strong></p><ul><li>3x1 USB-C&amp;HDMI KVM Switcher:</li><li>One full-functional USB-C 3.2 input, which can be extended to two HDMI outputs and supports USB data transmission.</li><li>Each HDMI input group support two independent HDMI input channels, which can be connected to two HDMI output ports of the PC and extended to two external monitors.</li><li>Each monitor has independent channel, which can support different resolution. </li><li>USB-C input supports DP MST mode with dual 4K@60Hz outputs. HDMI inputs support output 4K@60Hz resolution. Both USB-C and HDMI inputs support high refresh rate such as 2560x1440@144Hz, 1080P@240Hz / 165 Hz / 144 Hz / 120Hz.</li><li>USB-C input supports USB docking function:</li><li>It can provide wired network connection for the laptop USB-C port connected.</li><li>The device is equipped with a dedicated charging port that can provide up to 100W power delivery to charge the connected laptop (when an external USB-C power adapter is connected).</li></ul><p></p><ul><li>Multiple Peripherals interfaces:</li><li>Two super high-speed USB 3.0 type-A ports.</li><li>One super high-speed USB 3.0 type-C port.</li><li>Three USB 2.0 type-A ports.</li><li>Provides independent headset (3.5mm headset) port.</li><li>Supports USB 3.0 data transmission with the speed up to 5Gbps.</li><li>Supports automatic wake-up function – automatically wake up the PC in standby mode when switching.</li><li>Supports basic switching operations via front panel buttons.</li><li>Fast switching time of 2-3s, based on the virtual interaction function.</li><li>Supports firmware upgrade via USB type-B Host port in Desktop 2 group.</li></ul><p></p><p><strong style="color: rgb(165, 0, 33);">Package Contents</strong></p><p>Before you start the installation of the product, please check the package contents:</p><ul><li>KVM Switch Docking Station x 1</li><li>Power Adapter (DC 12V/3A) x 1</li><li>USB 3.0 Type-A to Type-B Cable x 2</li><li>USB 3.2 Type-C to Type-C Cable x 1</li><li>User Manual x 1</li></ul><p></p>

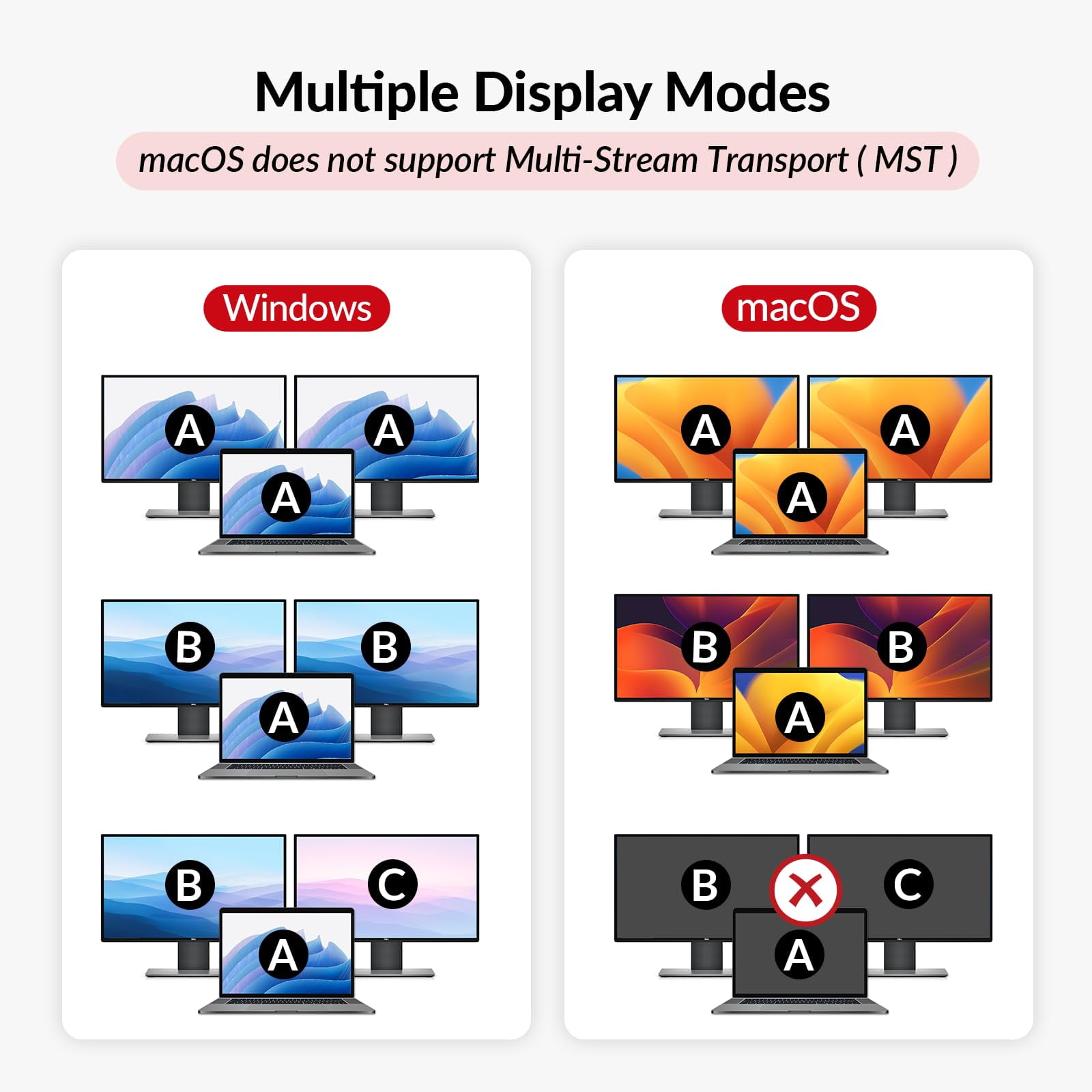

• Important Notes: Mac Os doesn’t support USB C MST (multi-stream transport), so two duplicate contents will be displayed.

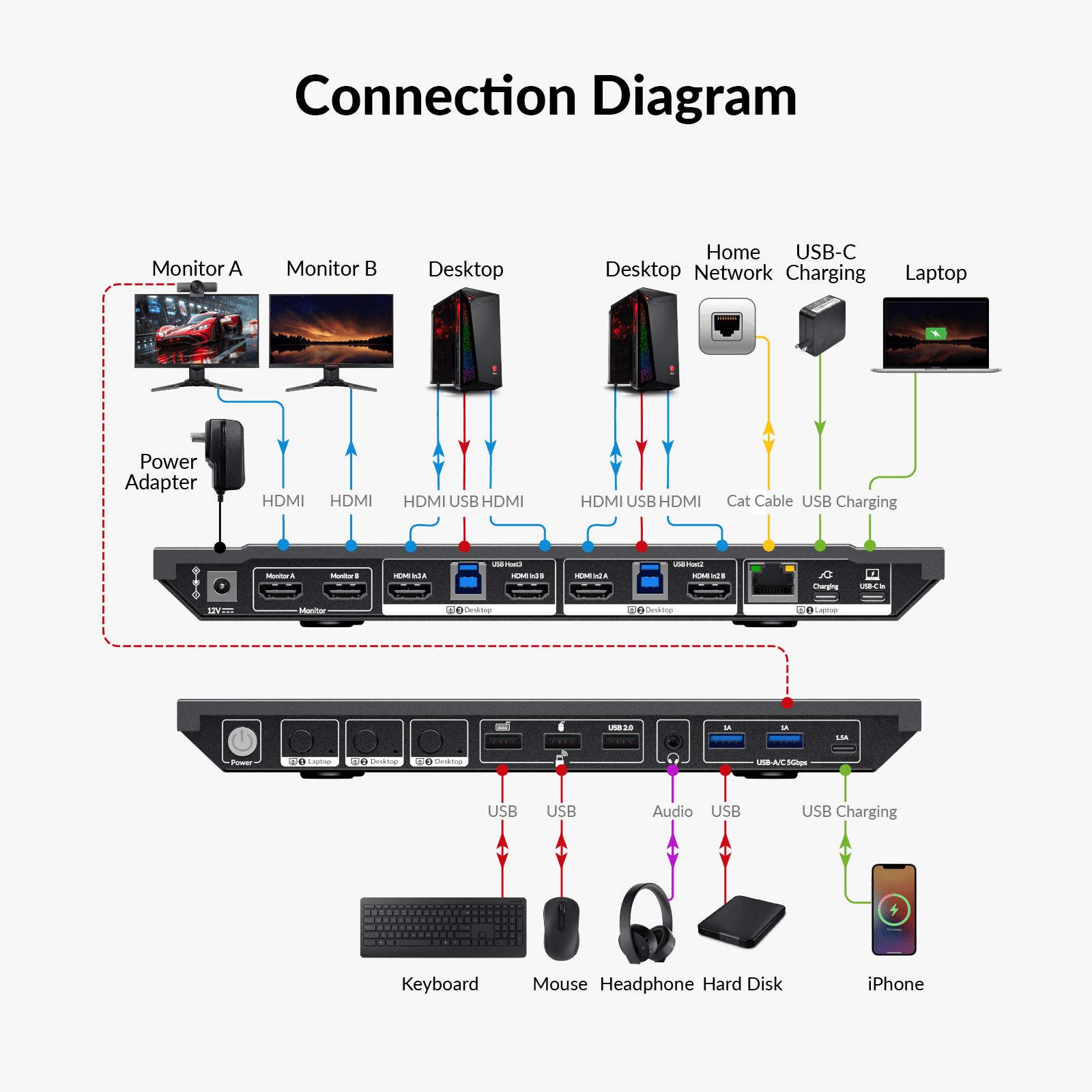

• 【Triple-Computer, Dual-Monitor Productivity】：Connect one USB C laptop and two desktop PCs (HDMI + USB-B) to dual monitors with a single set of keyboard and mouse. Switch between devices easily with the top button for efficient multitasking in work, creation, or gaming.
• 【4K Ultra HD & High Refresh Rates】：Supports 4K@60Hz, 1440p@144Hz, and 1080p@240Hz/165Hz. Enjoy crisp visuals, smooth motion, and responsive performance for gaming, design, and video editing.

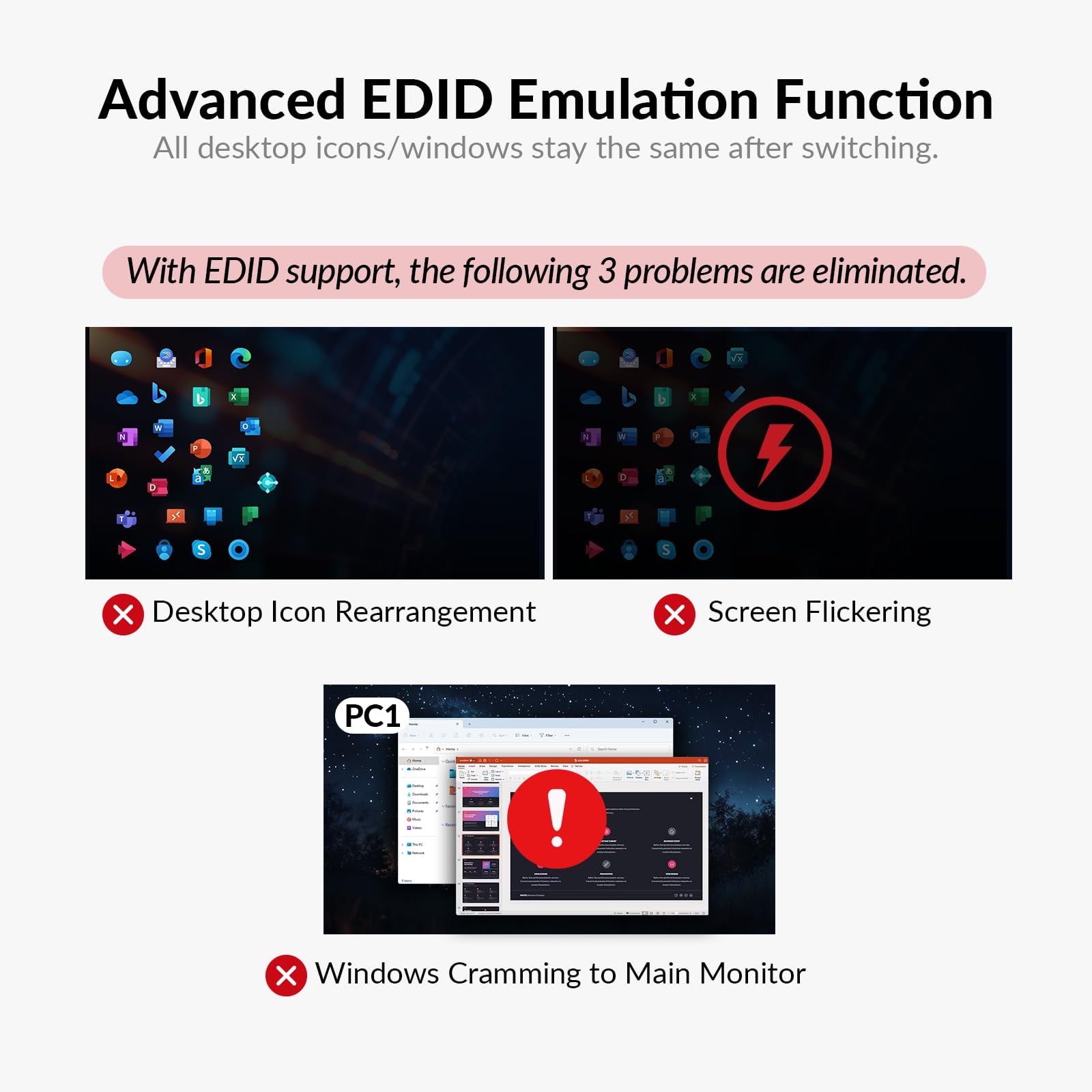

• 【EDID Emulation for Reliable Displays】：Keeps monitor settings consistent when switching devices, preventing black screens, resolution resets, and window re-arrangement issues.

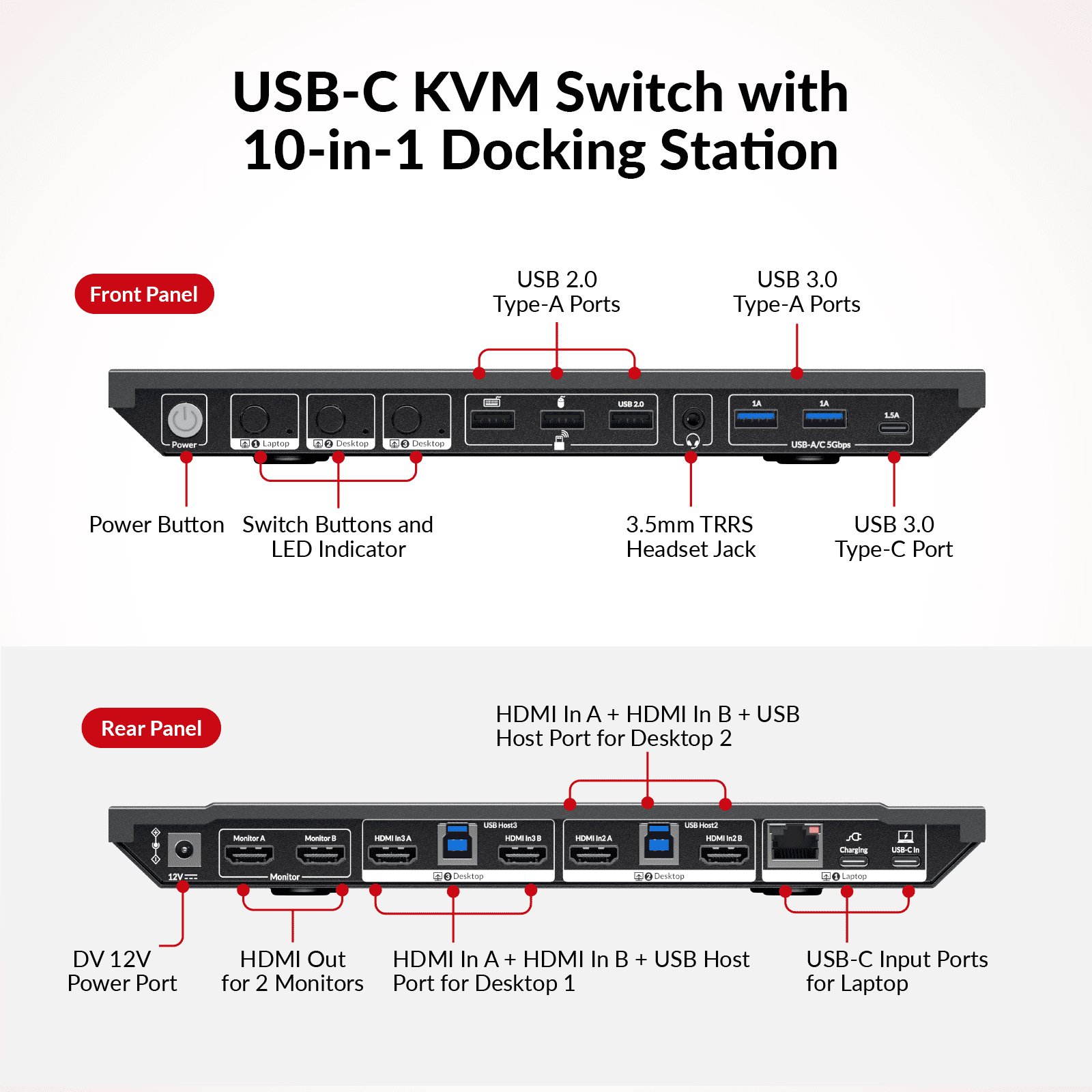

• 【All-in-One 10-Port USB C Docking Station】：Expand your workstation with USB 3.0, USB C, USB 2.0, SDXC card slot, 3.5mm headset jack, and more. Connect all your peripherals in one convenient hub.

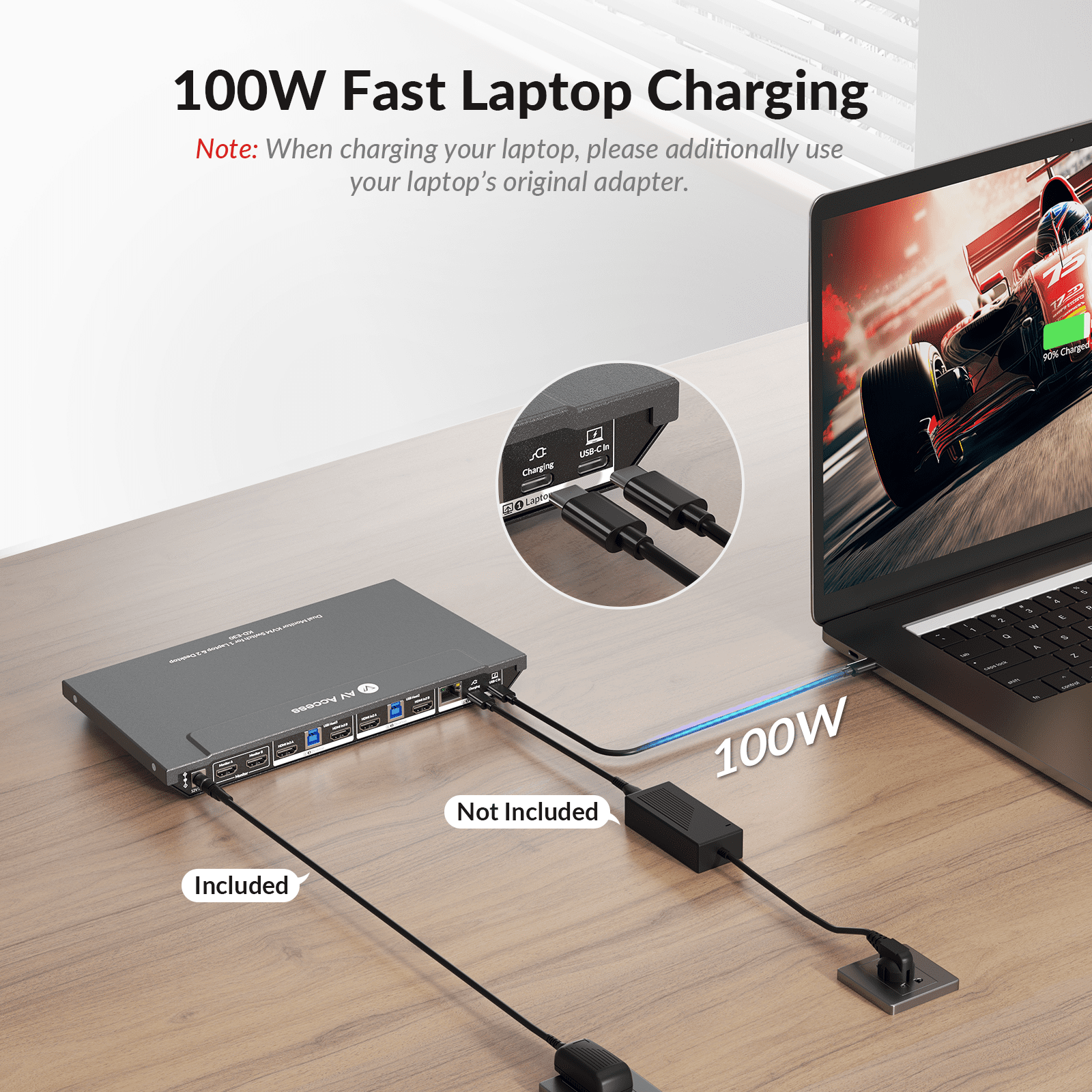

• 【Full-Speed 100W USB C Charging】：Equipped with a full-featured USB C port, the KD-E30 can provide up to 100W power delivery to your laptop, keeping it charged while you work with dual monitors and multiple peripherals. Note: When charging your laptop, please additionally use your laptop’s original adapter.

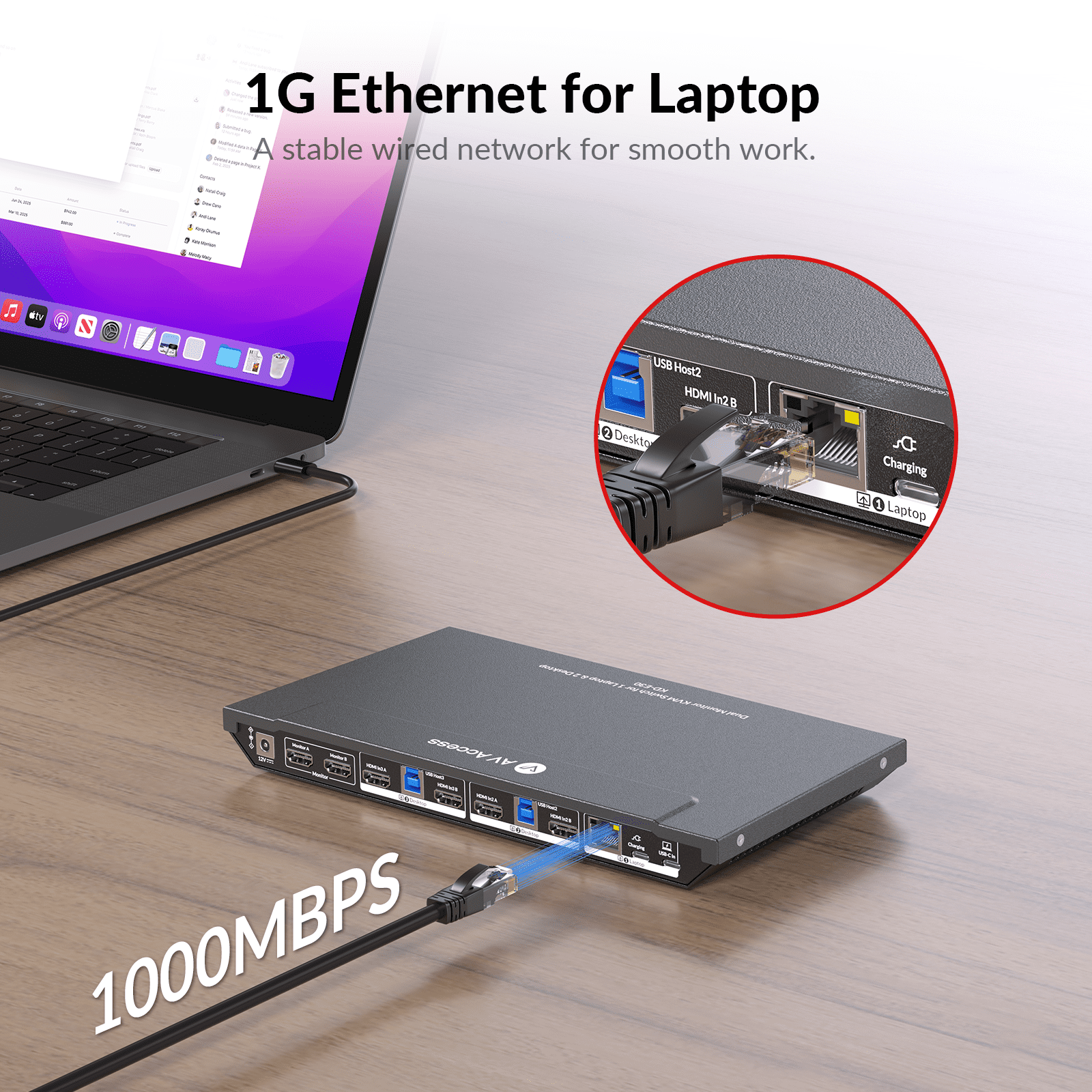

• 【Fast Gigabit Ethernet for Laptop】：Provides a stable 1G wired network connection to your laptop. Ideal for remote work, online meetings, and large file transfers.
• 【Automatic Wake-Up & Energy-Saving Control】：Automatically wakes up connected computers when switching devices, ensuring seamless operation without manual restart. The single power button lets you easily turn the KVM on or off, saving energy and keeping your workspace efficient.
